Description

Description:

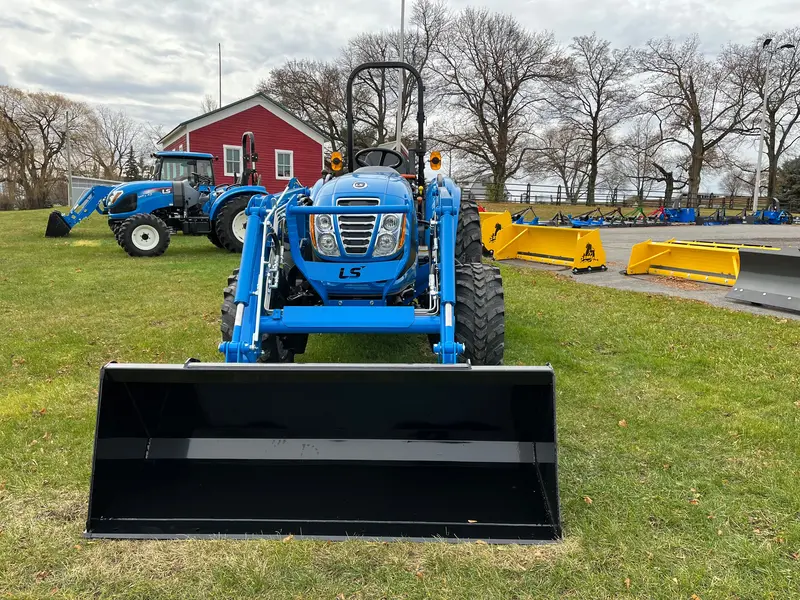

The MT3 Series provides four different horsepower models featuring both cab and ROPS options. These models are available with gear drive, hydrostatic transmissions or Power clutch. All models feature an ergonomic design making this a truly premium tractor.

Specifications:

Engine

• Type: 3 Cylinder, Liquid-cooled, Diesel, TC, CRDI
• Model (Tier 4): L3C19-T
• Engine HP (Gross): 52 HP
• PTO HP: 44.2 HP
• Rated Speed (RPM): 2,600 RPM
• Displacement: 114.7 cu. in.
• Fuel Tank Capacity:
• CABIN: 12.4 gallons
• ROPS: 10.6 gallons
• Alternator: 12V – 70 Amps

Drive Train

• Transmission: Synchro Shuttle / Powerclutch
• Number of Speeds: 16 Forward / 16 Reverse (Gear)
• Brakes: Wet, Multi-disc

PTO

• Type: Independent
• Rear RPM: 540

Hydraulic System

• Control System: Position/Draft
• Implement Pump: 8.2 gpm
• Steering Pump: 4.1 gpm (Gear)
• Total Flow: 12.3 gpm (Gear)
• Category (3 pt hitch): CAT II
• Hitch Lift Capacity: 2,755 lbs
• Remote Valves: 2 Pair (1 Detent, 1 Standard)

Dimensions

• Overall Length (Bumper to Link): 133 inches
• Wheelbase: 73.2 inches
• Overall Width with Tires: 62.5 inches
• Height to Top of ROPS:
• ROPS: 95 inches
• Cab: 90 inches

Tire Size

• Ag (Front / Rear): 9.5 – 16 / 13.6 – 24
• IND (Front / Rear): 12 – 16.5 / 17.5L – 24
• Turf Tire (Front / Rear): 28 x 8.5 – 15 / 41 x 14 – 20

Weight

• Total Weight (without ballast):
• Standard: 3,869 lbs
• Cab: 4,380 lbs

table { width: 100%; border-collapse: collapse; text-align: center; border: 1px solid black } td, th { border: 1px solid #dddddd; padding: 8px; }

Width	Weight	Height	Length
	3869 Kilograms		0 Inch
