Description:

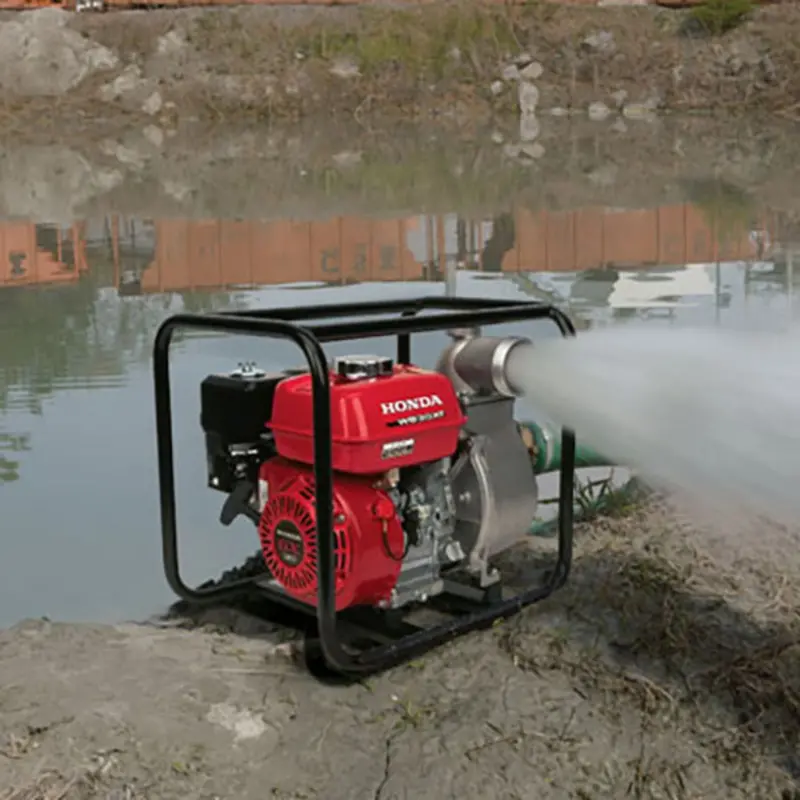

3″ general purpose water pump

• General purpose, centrifugal 3″ pump
• Easy starting Honda OHV commercial engine
• 290 gal./min. capacity
• Silicon carbide mechanical seal
• Cast iron volute and impeller

Features:

• Easy starting Honda OHV commercial engine, part of the durable Honda GX series
• Durable silicon carbide mechanical seal for extended wear
• 4 vane high efficiency impeller designed by Honda for improved performance
• Cast iron volute for rigid-mount and reduced case wear
• Heavy duty full frame protection with convenient tie-down locations
• Isolation mounted engine and pump to minimize vibration and increase durability
• Protected by Honda Oil Alert® to shut off the engine when low oil is detected
• Large strainer allows up to 8 mm (5/16 in.) solids to pass through, reducing clogging

Specifications:

• Engine: GX160, 163cc displacement, 2.7″ x 1.8″ bore and stroke, compression ratio 9.0:1
• Oil Alert: Standard
• Pump Type: Centrifugal, Self-priming
• Volute: Rigid Mounted Cast Iron
• Impeller: 4 Vane Cast Iron
• Mechanical Seal (Pump case / impeller): Silicon Carbide/Silicon Carbide
• Priming Time: 150 sec @ 16.4 ft.
• Drive System: Direct
• Discharge Capacity: 290 gal/min
• Suction Port Diameter: 3″ NPT
• Discharge Port Diameter: 3″ NPT
• Total Head Lift: 85 ft.
• Suction Head Lift: 25 ft.
• Maximum Pressure: 37 psi
• Dimensions (LxWxH): 20.1″ x 15.2″ x 17.9″
• Dry Weight: 57 lb.
• Fuel Capacity: 0.82 gal
• Run Time @ Max Discharge: 1.9 hr
• Strainer Part #: 78325-YG4-000
• Residential Warranty: 24 months
• Commercial Warranty: 12 months
