Description:

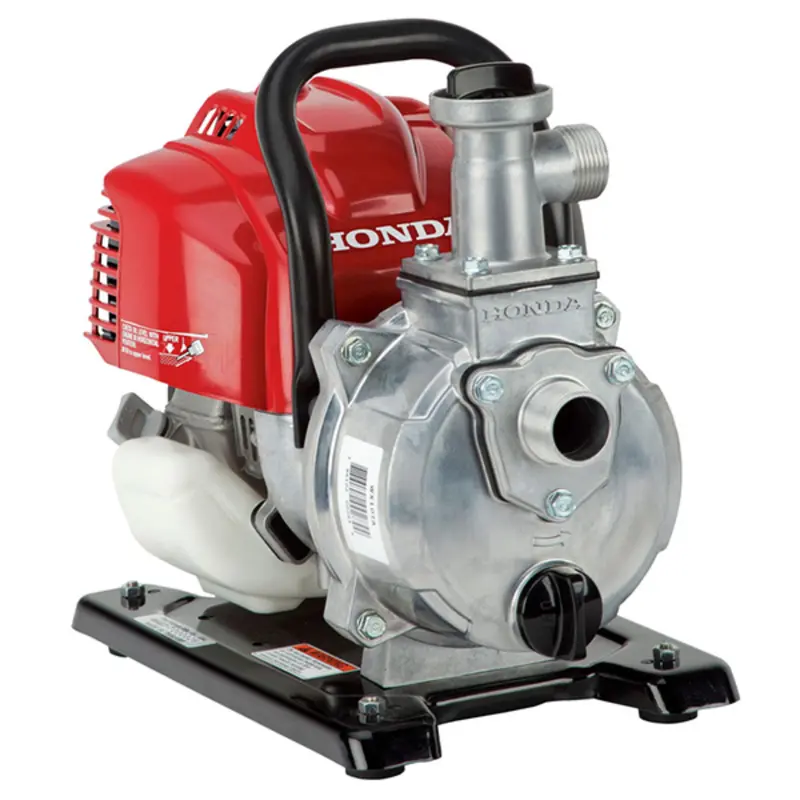

1″ general purpose pump

• 32 gal./min capacity
• Weighs only 13 lbs.
• Garden hose adaptor, suction hose, clamps, and strainer included

Specifications:

• Engine: GX25, 25cc displacement, 1.4″ x 1.0″ bore and stroke, compression ratio 8.0:1
• Pump Type: General purpose Centrifugal Self-priming
• Volute: Aluminum
• Impeller: Aluminum
• Mechanical Seal (Pump case / impeller): Carbon/Ceramic
• Priming Time: 80 sec. at 16.4 ft.
• Drive System: Direct
• Discharge Capacity: 32 gal./min.
• Suction Port Diameter: 1.0″ NPT
• Discharge Port Diameter: 1.0″ NPT
• Total Head Lift: 121 ft.
• Suction Head Lift: 26 ft.
• Maximum Pressure: 52 psi
• Dimensions (LxWxH): 13.4″ x 8.7″ x 11.6″
• Dry Weight: 13 lbs.
• Fuel Capacity: 0.56 qt
• Run Time @ Max Discharge: 0.9 hr
• Strainer Part #: 78325-YB0-711
• Residential Warranty: 2 years
• Commercial Warranty: 1 year
