Description

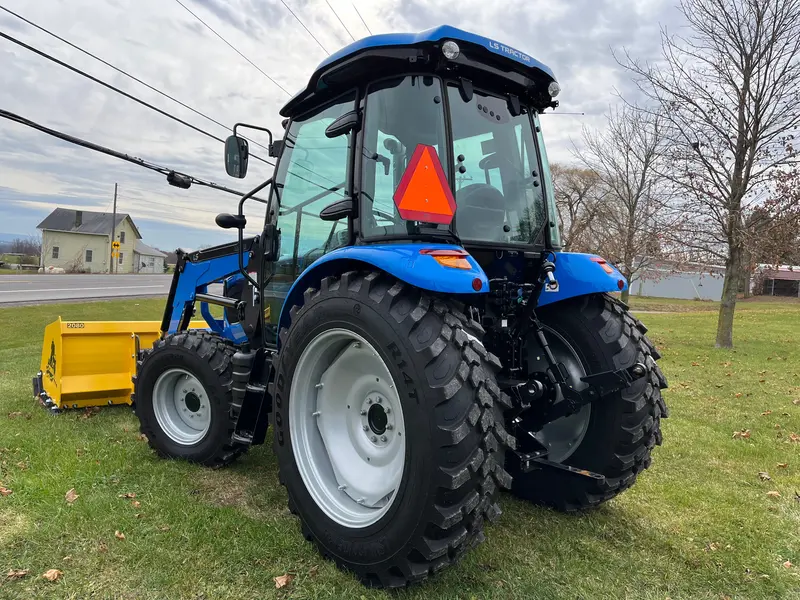

LS Tractor MT463CPS

63HP Power Shuttle Compact Tractor with Cab

Specifications

 Engine

Type	Vertical Water-Cooled 4 Cycle Diesel Engine
Model (Tier 4)	L4C25-T
Engine HP (Gross)	63
PTO HP	54.1
Rated Speed (RPM)	2,500
Displacement (cu. in)	152.85
Fuel Tank Capacity (gal)	24.3



Drive Train

Transmission Type	Synchro Shuttle
No. of Speed	F16 X R16
Brakes	Wet, Multi-disc
Steering	Hydrostatic Power Steering



PTO

Type	Independent
Rear, rpm	540, 540E (Standard)



Hydraulic System

Control System	Position / Draft
Implement pump (gpm)	14.5
Steering pump (gpm)	6.6
Total flow (gpm)	21.1
Category, 3 pt hitch	CAT II
Hitch Lift capacity, lbs (Hitch end)	3,483 (@ 24˝ from the Hitch end)
Remote Valves	2 Pairs (Front), 2 pairs (Rear)



Dimension

Overall length (Frame to Link, in.)	135
Overall width with tires (in.)	72.6
Wheelbase (in.)	83.1
Height to top (in.)	105.4



Tire Size

Ag Front / Rear	9.5 – 24 / 16.9 – 28
IND Front / Rear	10.5/80×18 10PR / 19.5Lx24 8PR
Large Ag Front / Rear	11.2-24 / 16.9-30
R14 Front / Rear	320-85R20 119D / 420/75R34 142D



Weight

Total weight without ballast (lbs.)

5,776

Standard Options

Remote Valve – 2 Pairs

Loader Valve – 2 Pairs

Engine Kill Switch

Seat With Suspension & Armrest

Telescopic Lower Link

External Lift Control Lever

Drawbar

Linked Pedal

Tool Box
