Description

FRONT LOADER AVAILABLE!

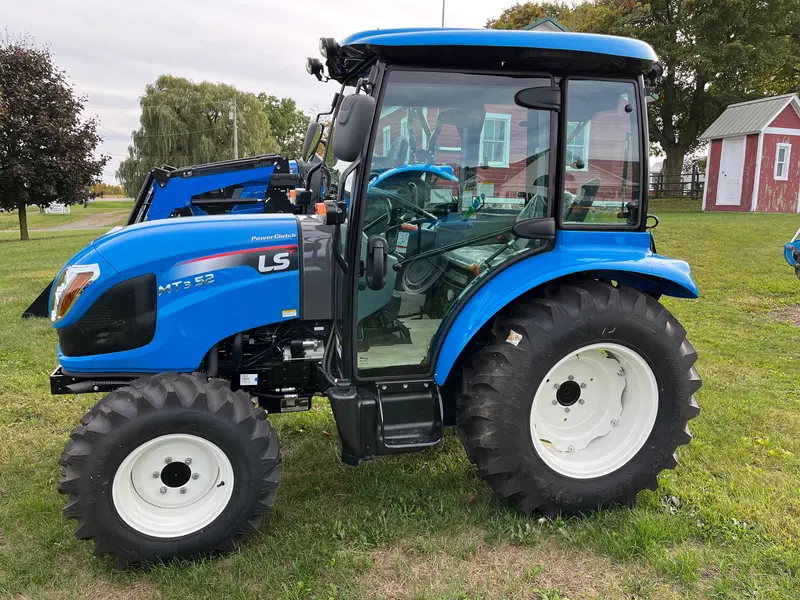

The MT3 Series provides four different horsepower models featuring both cab and ROPS options. These models are available with gear drive, hydrostatic transmissions or Power clutch. All models feature an ergonomic design making this a truly premium tractor.

Specifications:

Engine

• Type: 3-Cylinder, Liquid-Cooled, Diesel, Turbocharged, Common Rail Direct Injection (CRDI)
• Model (Tier 4): L3C19-T
• Engine HP (Gross): 52 HP
• PTO HP: 44.2 HP
• Rated Speed: 2,600 RPM
• Displacement: 114.7 cu. in.
• Fuel Tank Capacity:
• 12.4 gallons (Cabin)
• 10.6 gallons (ROPS)
• Alternator: 12V – 70 Amps

Drive Train

• Transmission: Synchro Shuttle / Powerclutch
• Number of Speeds: 16 Forward x 16 Reverse (Gear)
• Brakes: Wet, Multi-Disc
• Steering: Hydrostatic Power Steering

PTO

• Type: Independent
• Rear PTO Speed: 540 RPM

Hydraulic System

• Control System: Position/Draft
• Implement Pump Flow: 8.2 gpm
• Steering Pump Flow: 4.1 gpm (Gear)
• Total Flow: 12.3 gpm (Gear)
• 3-Point Hitch Category: CAT 2
• Hitch Lift Capacity: 2,755 lbs
• Remote Valves: 2 Pair (1 Detent, 1 Standard)

Dimensions

• Overall Length (Bumper to Link): 133 inches
• Wheelbase: 73.2 inches
• Overall Width with Tires: 62.5 inches
• Height to Top of ROPS: 95 inches (ROPS) / 90 inches (Cab)

Tire Size

• Agricultural (Front / Rear): 9.5 – 16 / 13.6 – 24
• Industrial (Front / Rear): 12 – 16.5 / 17.5L – 24
• Turf (Front / Rear): 28 x 8.5 – 15 / 41 x 14 – 20

Weight

• Total Weight without Ballast: 3,869 – 4,380 lbs (with Cab)

table { width: 100%; border-collapse: collapse; text-align: center; border: 1px solid black } td, th { border: 1px solid #dddddd; padding: 8px; }

Width	Weight	Height	Length
	4380 Kilograms		0 Inch
